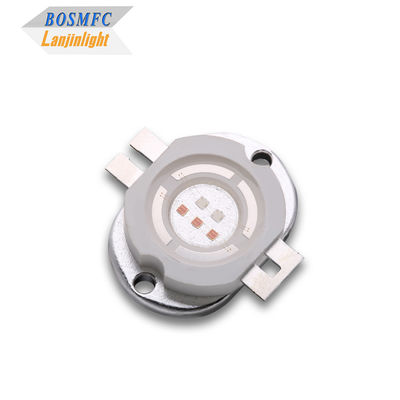

High-power LED Red+blue dual color 5W integrated LED light source for spectral therapy .
Szczegóły Produktu:
| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | BOSMFC |
| Orzecznictwo: | Rohs, Reach |
| Numer modelu: | Dioda LED SMD 3030, podczerwień |
Zapłata:
| Minimalne zamówienie: | 100pcs |
|---|---|
| Szczegóły pakowania: | 100pcs/rolka, rolka+torba antytatyczna+karton |
| Czas dostawy: | 5-15 dni |
| Zasady płatności: | T/T, Western Union, PayPal |
| Możliwość Supply: | 500 kk/miesiąc |
|
Szczegóły informacji |
|||
| Moc: | 5w | Emitujący kolor: | czerwony + niebieski |
|---|---|---|---|
| Długość fali: | 620 nm/460 nm | Prąd do przodu: | 350MA |
| Napięcie do przodu: | 6-7v | Kąt oglądania: | 120 ° |
| Rozmiar: | 23*15,5*6 mm | Temperatura robocza (℃): | -40 - +85 |
| Temperatura przechowywania (℃): | -40 - +100 | Długość życia: | 50 000 godzin |
| Gwarancja: | 3 lata | Marka chipów: | San'an Chip / Epistar Chip |
| Pakiet: | 100 sztuk/szpula | ||
opis produktu
High-power LED Red+blue dual color 5W integrated LED light source for spectral therapy
This high-power 5W integrated LED light source combines red and blue wavelengths in a single robust package. Designed for professional spectral therapy devices, it delivers targeted phototherapy - the blue light effectively targets acne-causing bacteria while the red light stimulates collagen production and reduces inflammation. Its integrated design ensures consistent performance and thermal stability, making it an ideal core component for clinical-grade skincare and pain relief equipment requiring reliable, high-intensity light treatment.
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Instant light(less than 100ns)
- RoHS and Reach certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 625nm
460nm |
--- |
915 1315 |
--- | LM | IF=350mA |
| Dominant wavelength | 625nm
460nm |
620 457 |
--- |
625 462 |
nm | IF=350mA | |
| Forward voltage | VF | 625nm
460nm |
6 6
|
--- |
7 7 |
V | IF=350mA |
| Viewing angle | --- | 120 | --- | deg | IF=350mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=350mA |
| Operation Temperature | －40~+85℃ | Size | 23*15.5*6mm |
| Storage Temperature | －40~+100℃ | Packing | 100pcs/reel |
Applications:
1. Acne Treatment - Blue light combats bacteria.
2. Anti-Aging Care - Red light boosts collagen.
3. Skin Rejuvenation - Improves tone and texture.
4. Pain Management - Soothes muscles and joints.
5. Wound Healing - Accelerates tissue repair.
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop. Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard. Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1: Are you a factory or a trade company?
A1: We're professional LED manufacturer 18 years in China, providing one-stop OEM & ODM service to all partners all over the world.
Q2: Can I get some samples for tests?
A2: Yes, we welcome samples to check our LED quality and performance. Free samples according to your requirement..
Q3: What about the lead time?
A3: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
Q4: What payment terms are available?
A4: We accept T/T, Paypal, Western Union .
Q5. How to proceed an order for led light?
A5: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
